Barrel Plastic Viscous Dampers Two Way Damper TRD-T16C

Short Description:

● Introducing a compact two-way rotary damper, designed to save space during installation.

● This damper offers a 360-degree working angle and is capable of damping in both clockwise and anti-clockwise directions.

● It features a plastic body filled with silicone oil that ensures efficient performance.

● With a torque range of 5N.cm to 7.5N.cm, this damper delivers precise control.

● It guarantees a minimum lifetime of at least 50,000 cycles without any oil leakage issues. Refer to the provided CAD drawing for further details.

Send email to us

Product Detail

Product Tags

Barrel Rotational Damper Specification

5	5.0±1 N·cm
7.5	7.5±1.5 N·cm
X	Customized

Note: Measured at 23°C±2°C.

Barrel Damper Rotation Dashpot CAD Drawing

Dampers Feature

Product Material
Base	POM
Rotor	PA
Inside	Silicone oil
Big O-ring	Silicon rubber
Small O-ring	Silicon rubber

Durability
Temperature	23℃
One cycle	→1 way clockwise, → 1 way anticlockwise (30r/min)
Lifetime	50000 cycles

Damper Characteristics

Torque increases with higher rotation speed in the oil damper at room temperature (23℃), as depicted in the drawing.

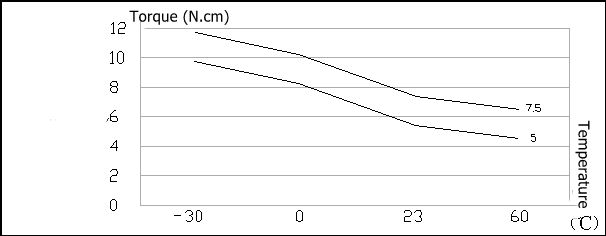

At a rotation speed of 20 revolutions per minute, the torque of the oil damper generally increases with temperature reduction and decreases with temperature increment.

Barrel Damper Applications

Car interiors such as the roof shake hands handle, car armrest, inner handle, and bracket provide convenience and comfort for passengers. These components enhance the functionality and aesthetics of the vehicle's interior space.
