Rotary Buffer TRD-D6 One Way in Toilet Seats

Short Description:

1. The Rotary Buffer – a compact and efficient one-way rotational damper designed for various applications, including toilet seats.

2. This space-saving damper is engineered for a 110-degree rotation, providing smooth and controlled movement.

3. With its oil type of silicon oil, the damping direction can be customized to either clockwise or anti-clockwise, ensuring seamless user experience.

4. The Rotary Buffer offers a torque range of 1N.m to 3N.m, making it suitable for a range of needs.

5. The minimum life time of this damper is at least 50,000 cycles without any oil leakage. Upgrade your toilet seats with this reliable and durable rotary damper, the ideal solution for creating a comfortable and convenient user experience.


Product Detail

Product Tags

Vane Damper Rotational Damper Specification

Model

Max.      torque

Reverse   torque

Direction

TRD-D6-R103

1 N·m (10kgf·cm)

0.2 N·m (2kgf·cm)

Clockwise

TRD-D6-L103

Counter-clockwise

TRD-D6-R203

2 N·m (20kgf·cm)

0.4 N·m (4kgf·cm)

Clockwise

TRD-D6-L203

Counter-clockwise

TRD-D6-R303

3 N·m (30kgf·cm)

0.8 N·m (8kgf·cm)

Clockwise

TRD-D6-L303

Counter-clockwise

Note: Measured at 23°C±2°C.

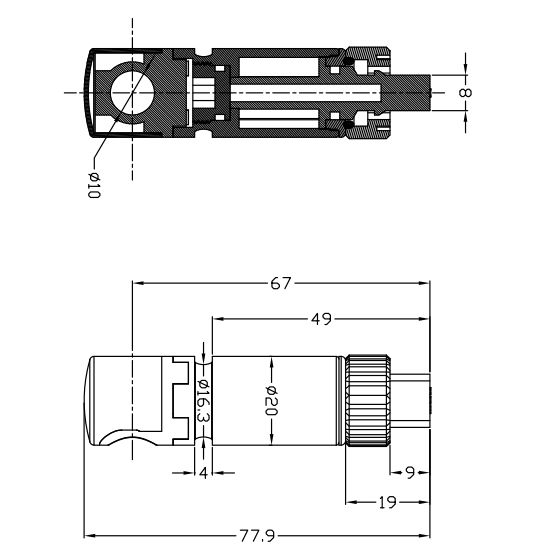

Vane Damper Rotation Dashpot CAD Drawing

TRD-D6-1

Application For Rotary Damper Shock Absorber

It is a easy take off hinge for toilet seat.

Optional Attachment (Hinge)

TRD-D6-2
TRD-D6-3
