Small Plastic Rotary Shock Absorbers Two Way Damper TRD-N13
Barrel Rotational Damper Specification
|
Torque |
|
10±2N·cm |
|
15±3N·cm |
|
20±4N·cm |
|
25±4N·cm |
|
30±5N·cm |
|
35±6N·cm |
Note: Measured at 23°C±2°C.

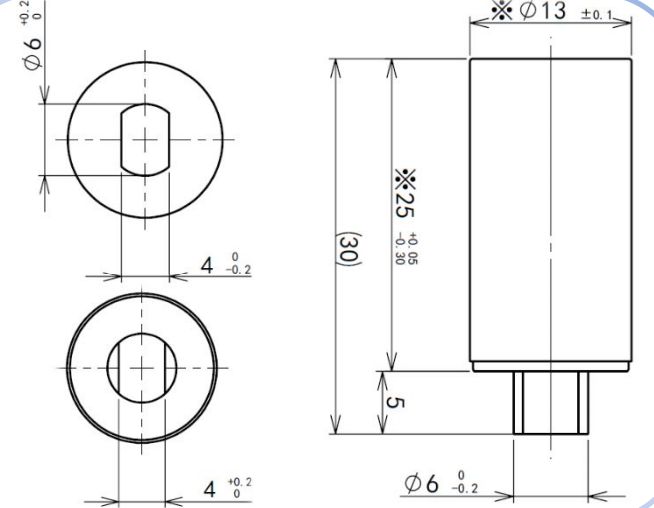

Barrel Damper Rotation Dashpot CAD Drawing
Dampers Feature
|
Bill of Material |
|
|
Base |
POM |
|
Rotor |
POM |
|
Caps |
POM |
|
O-Ring |
NBR |
|
Oil |
Silcone |
|
Damper Specification |
|
|
Torque |
8-41N.cm |
|
Rotation Angle |
Free Angle |
|
Size: |
φ13*30 mm |
|
Temperature |
-5~50°C |
|
Durability |
30000 cycles |
|
Maximum Rotation Speed |
50r/min |

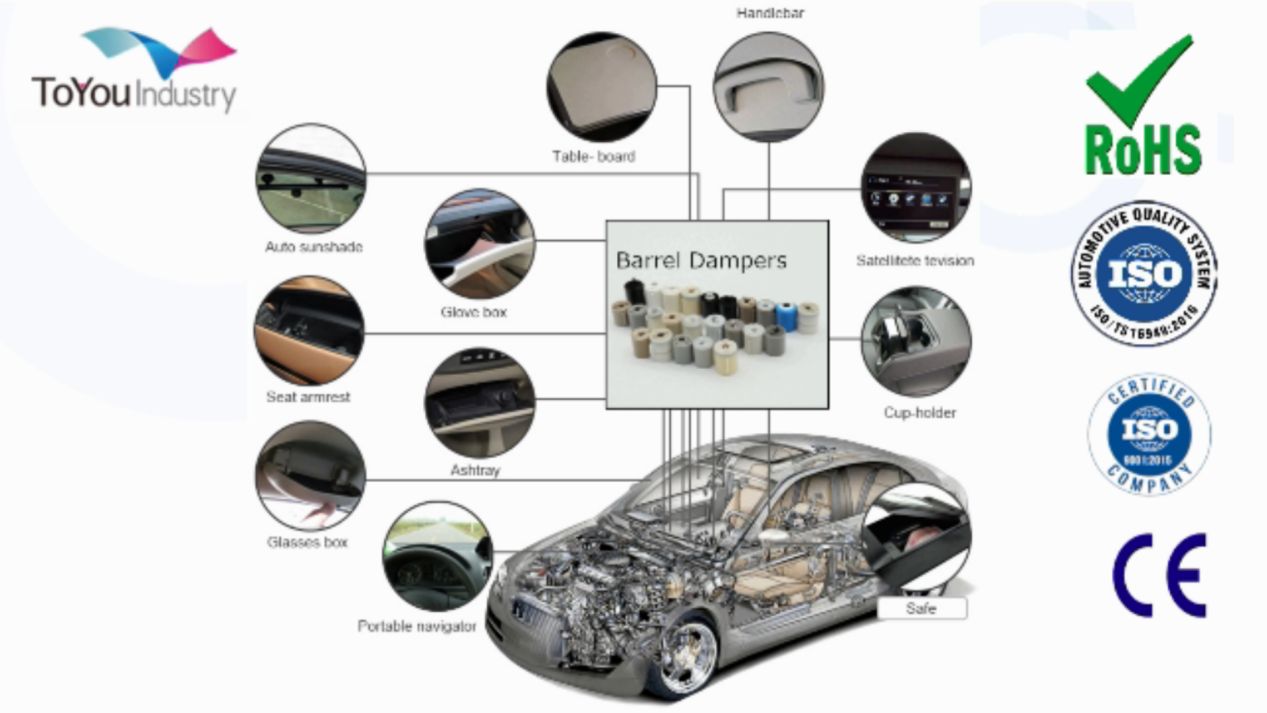

Barrel Damper Applications
Car roof shake hands handle, Car armrest, Inner handle and other car interiors,Bracket, etc.
