Soft Close Plastic Rotary Buffers Two Way Damper TRD-TD14

Short Description:

● TRD-TD14 is a compact two-way rotary damper designed for soft closing applications.

● It features a small and space-saving design, making it easy to install (CAD drawing available).

● With a working angle of 360 degrees, it provides versatile damping control. The damping direction can be adjusted in both clockwise and anti-clockwise rotations.

● The damper is made of a durable plastic body, filled with silicone oil for optimal performance.

● The torque range of TRD-TD14 is 5N.cm to 7.5N.cm, or it can be customized to meet specific requirements.

● It ensures a minimum lifespan of at least 50,000 cycles without any oil leakage.


Product Detail

Product Tags

Barrel Rotational Damper Specification

Torque

5

5.0±1.0 N·cm

7.5

7.5±1.0  N·cm

X

Customized

Note: Measured at 23°C±2°C.

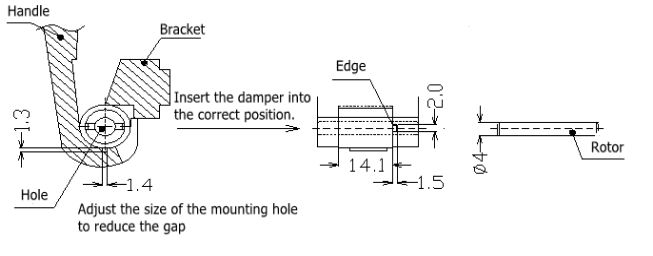

Barrel Damper Rotation Dashpot CAD Drawing

TRD-TD14-2
TRD-TD14-3

Dampers Feature

Product Material

Base

POM

Rotor

PA

Cover

POM

Inside

Silicone oil

Big O-ring

Silicon rubber

Small O-ring

Silicon rubber

Durability

Temperature

23℃

One cycle

→1 way clockwise, → 1 way anticlockwise (30r/min)

Lifetime

50000 cycles

Damper Characteristics

1. Torque increases as the rotation speed of the oil damper increases, as depicted in the drawing, at room temperature (23℃).

TRD-TD14-4

2. Generally, the torque of the oil damper increases with a temperature reduction and decreases with a temperature increment, while maintaining a constant rotation speed of 20r/min.

TRD-TD14-5

Barrel Damper Applications

TRD-T16-5

Car interior components, such as roof handles, armrests, inner handles, brackets, etc.
