Two way TRD-TF14 Soft Close Plastic Rotary Motion Dampers
Specification of Mini Rotary Hydraulic Damper
|
Range: 5-10N·cm |
|
|
A |
3.5±0.5 N·cm |
|
B |
4.5±0.5 N·cm |
|
C |
5.5±0.5 N·cm |
|
D |
6.5±0.5 N·cm |
|
E |
7.5±0.5 N·cm |
|
X |
Customized |
Note: Measured at 23°C±2°C.
CAD Drawing for Small Rotary Dampers
Small Rotary Shock Absorber Feature
|
Product Material |
|
|
Base |
ABS |
|
Rotor |
POM |
|
Inside |
Silicone oil |
|
Big O-ring |
Silicon rubber |
|
Small O-ring |
Silicon rubber |
|
Durability |
|
|
Temperature |
23℃ |
|
One cycle |
→1 way clockwise, → 1 way anticlockwise (30r/min) |
|
Lifetime |
50000 cycles |
Rotational Dampers Feature

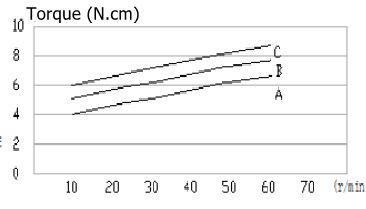

Torque vs rotation speed (at room temperature:23℃)
Oil damper torque changing by rotate speed as shown in the drawing. Torque increase by rotate speed increasing.
Torque vs temperature (rotation speed:20r/min)
Oil damper torque changing by temperature,generally Torque is increasing when temperature reduction and decreasing when temperature increment.
Barrel Damper Applications
Car roof shake hands handle, Car armrest, Inner handle and other car interiors,Bracket, etc.
